ZCASE Flip Ready Cases: Engineering Efficiency for Professional Console Protection

A high-performance digital console represents a substantial capital investment, yet its physical integrity often depends on the manual coordination of a multi-person crew during a rapid load-in. Industry professionals recognize that the transition from a vertical transport state to a horizontal operational position is the moment of maximum risk for both the hardware and the technicians involved. Back injuries and accidental drops aren't just hazards; they're expensive liabilities that directly impact your operational bottom line.

This article demonstrates how ZCASE Flip Ready Cases utilize a patented hydraulic mechanism to transform console deployment into a controlled, single-person operation that secures your $50,000+ assets. By shifting the physical burden from the crew to precision-engineered hydraulics, these cases slash setup times and reduce labor costs per event. We'll analyze the technical specifications of these Polish-manufactured units, focusing on their structural birch plywood assembly, vibration reduction features, and the logistical efficiency gained through superior mechanical design. You'll discover why the transition to an active deployment platform is the next logical step for professional touring operations where equipment failure is not an option.

The Evolution of Professional Console Protection

The transition from analog to digital consoles has fundamentally altered the logistical requirements of professional production. Analog boards were often manageable through modular configurations, but modern digital consoles are dense, high-value assets with sensitive internal components and complex rear-panel I/O. As these consoles grew in value, the traditional methods of transport and deployment became insufficient. Relying on multiple crew members to manually lift a console from a standard shell onto a separate stand introduces unnecessary variables. Implementing ZCASE Flip Ready Cases addresses these vulnerabilities by integrating the deployment mechanism directly into the protective housing. It's a risk mitigation strategy that seasoned engineers prioritize.

Challenges in Modern Touring Logistics

Modern production environments demand rapid deployment with minimal personnel. The increasing weight of digital desks, often exceeding 130 lbs for mid-sized units, creates a significant physical burden. When technicians perform a "lift-and-set" operation, the risk of equipment damage or personal injury peaks during the unboxing phase. High-value digital consoles are delicate. Accessing rear I/O panels often requires additional maneuvering, which can strain cable connections. The rising cost of specialized labor means production companies must find ways to reduce their crew footprint without compromising safety. Standard protective solutions, while durable, offer only passive protection and fail to address the physical mechanics of the setup process.

Defining the Flip Ready Standard

A flip-style case represents a shift from passive storage to an active deployment platform. Unlike a traditional ATA-300 rated flight/road case, ZCASE Flip Ready Cases integrate the stand and the transport shell into a single, cohesive unit. This design utilizes 12mm birch plywood and reinforced steel hardware to provide a rigid foundation for a patented hydraulic lift system engineered in Poland. The inclusion of integrated 19-inch rack spaces allows for a complete workstation setup where outboard gear and power conditioning remain patched during transit.

• Hydraulic Assistance: Counterbalances the console's center of gravity for smooth rotation.
• Structural Integrity: High-grade birch plywood construction ensures the case withstands repeated mechanical stress.
• Mobility: Heavy-duty casters facilitate rapid movement across varied venue surfaces.

The flip-style mechanism is a mechanical solution to gravity-based setup risks. By utilizing these specialized ProX Cases, a single operator can move a console from its vertical transport position to a horizontal operational state in seconds. This engineering-first approach eliminates the need for a secondary stand and ensures the console remains secured within its protective environment throughout the entire event lifecycle.

Engineering the Flip Mechanism: How It Works

The core of ZCASE Flip Ready Cases lies in the mechanical counterbalancing of heavy digital consoles. Traditional cases require external force to lift and position the desk. In contrast, this system utilizes a "Zero-Lift" philosophy. The console's center of gravity remains stable throughout the rotation. This stability is achieved through precision-engineered pivot points and internal support structures that prevent lateral shifting. Precision CNC-cut foam inserts, tailored to specific console footprints, ensure the hardware remains immobile within the cradle during both transport and the flip sequence.

The Hydraulic Advantage

High-pressure gas struts manage the transition from a vertical transport orientation to a functional horizontal state. These struts are calibrated to the specific weight of the console, providing a controlled descent and ascent. This mechanical assist eliminates the need for multi-person lifting, effectively reducing the risk of musculoskeletal strain. Maintaining an ergonomic console height is critical for long-term operator health. Safety locking mechanisms are integrated into the frame to prevent accidental collapse. These locks engage automatically when the console reaches its operational position, ensuring stability during high-intensity mixing sessions. Periodic inspection of the hydraulic seals ensures long-term touring reliability.

Structural Integrity and Hardware

Material selection is a non-negotiable aspect of the engineering process. Each case utilizes 12mm birch plywood, a material chosen for its superior strength-to-weight ratio and resistance to warping. Impact-resistant ball corners and recessed butterfly latches provide a streamlined profile for truck packing. High-grade casters are essential for reducing vibration during transit, protecting sensitive internal circuitry from micro-fractures. It's a level of protection that passive shells cannot match.

Custom internal cable management paths allow for pre-patched I/O. Technicians don't need to disconnect snakes or power cables during the flip. This persistence of connectivity saves time and reduces wear on physical ports. For those seeking to optimize their workflow, exploring the full range of ProX Cases provides insight into how these engineering standards are applied across different console models. The result is a professional workstation that prioritizes functional excellence over simple containment.

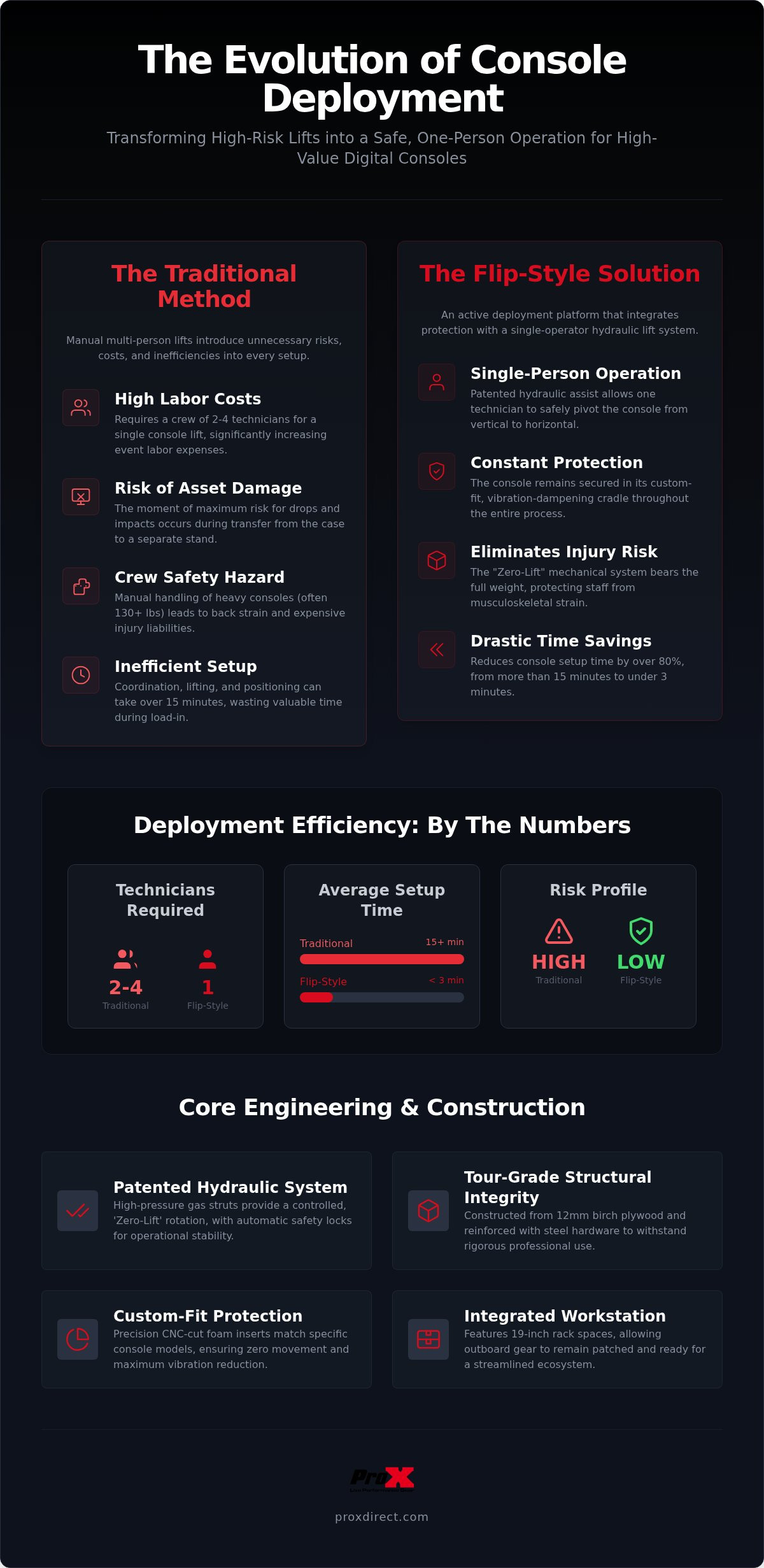

Quantifying Efficiency: Setup Time and Labor Savings

The deployment cycle of a professional console is often the most time-consuming phase of a load-in. Traditional workflows require a minimum of two technicians to safely transfer a console from its transport shell to a separate workstation stand. By implementing ZCASE Flip Ready Cases, production companies can consolidate this task into a single-operator procedure. This shift doesn't just save seconds; it fundamentally alters the logistical footprint and labor requirements of the entire event. When the mechanical burden is shifted to a hydraulic system, the crew is free to address higher-priority technical tasks.

Operational Workflow Comparison

A side-by-side analysis reveals significant discrepancies in labor requirements between traditional methods and integrated flip systems. In a traditional scenario, the crew must unlatch the case, perform a synchronized heavy lift, position the console on a stand, route multiple cable looms, and find storage for the detached lid. This process typically consumes fifteen minutes per console when performed carefully. The flip system streamlines these steps into a single motion. The operator unlatches the case and flips the console into its operational state. Since the base remains part of the workstation, there's no need for separate stand assembly or lid storage. It's a state of readiness achieved in under three minutes. For more on setup speed and engineering standards, consult our Professional DJ Equipment Case Purchase Guide.

Labor and Safety Metrics

The financial implications of these time savings are measurable across a touring season. Reducing the setup time from fifteen minutes to three minutes represents an 80% reduction in console deployment labor. For small-to-mid-sized events where crew numbers are limited, this efficiency allows personnel to focus on critical signal path testing or lighting focus. Beyond immediate man-hour costs, the long-term ROI is found in injury prevention. The cost of a single musculoskeletal injury can far exceed the premium of a specialized case. Ergonomic design contributes to crew longevity and morale by eliminating high-risk lifts that lead to fatigue. Setup efficiency is a direct contributor to event profitability. Investing in mechanical assists like ZCASE Flip Ready Cases ensures that the crew remains productive throughout a multi-city tour without the physical degradation associated with manual lifting.

Compatibility and Integration with Professional Ecosystems

Precision engineering distinguishes ZCASE Flip Ready Cases from generic protective shells. Each case is CNC-machined to the exact physical footprint of industry-standard digital consoles, including the Yamaha DM7, Allen & Heath dLive, and DiGiCo systems. This bespoke fit ensures that the console's weight is distributed evenly across the internal support structure, preventing chassis stress during high-vibration transport. Beyond simple containment, these units function as integrated technical hubs. By incorporating 19-inch rack spaces, typically ranging from 2U to 4U directly beneath the console cradle, technicians can house local I/O, power conditioning, and wireless monitoring systems within the same footprint.

Standardized Logistics

Logistical efficiency depends on predictable dimensions. These cases are designed with external dimensions that align with standard truck-pack widths, ensuring maximum density during load-ins. This compatibility allows them to integrate seamlessly with TruckPaX™ Truck Pack Cases, creating a uniform wall of equipment that minimizes shifting in transit. For production teams managing complex mobile setups, exploring our AV Broadcasting Cases reveals a similar commitment to modular workstation design. Utilizing uniform logistical standards reduces the complexity of global event touring and ensures that equipment arrives in operational condition, regardless of the venue's physical constraints.

Digital Console Specifics

Modern digital desks generate significant heat and require specific cable management solutions. The internal architecture of the Flip Ready system prioritizes thermal management, providing dedicated airflow paths around the console's ventilation ports to prevent overheating during extended operation. The rear section features a specialized doghouse designed for cable loom and snake management. This area allows for complex patching to remain connected even when the console is rotated into its transport position. High-density foam inserts provide a protective barrier for motorized faders and delicate touchscreens. This ensures that the mechanical forces of the flip do not translate into physical impact on sensitive user interfaces.

Selecting the correct housing for your digital assets is a critical decision for any production firm. To ensure your gear is protected by industry-leading engineering, view our complete inventory of console workstations today.

The Partnership: ProX and ZCASE Engineering

ProX established an exclusive partnership with ZCASE in Poland to bridge the gap between high-end European mechanical engineering and the logistical needs of the global professional market. This collaboration ensures that every unit benefits from Polish manufacturing precision while remaining supported by the extensive technical network of ProX. While the manufacturer focuses on the structural and mechanical integrity of the patented hydraulic systems, ProX provides the industry expertise and distribution infrastructure necessary for high-stakes touring operations. This synergy allows for a steady supply of specialized ZCASE Flip Ready Cases that meet the rigorous demands of modern production schedules.

Identifying authentic ZCASE technology within the ProX catalog requires attention to specific engineering markers. Authentic units feature the patented hydraulic mechanism calibrated for precise weight distribution and counterbalancing. These cases utilize high-grade 12mm birch plywood and industrial-strength hardware that exceeds standard transport specifications. The presence of these technical attributes confirms that the equipment is engineered for active deployment rather than passive storage, providing a reliable backbone for the industry.

Custom Engineering Services

Designing a solution for a one-off or vintage console requires a methodical approach to material science and mechanical assembly. The custom engineering process begins with a comprehensive analysis of the console's physical dimensions and its specific center of gravity. Engineers then develop a digital prototype to determine the optimal placement of the hydraulic struts. This ensures that the "Zero-Lift" philosophy is maintained even for non-standard gear. Following the digital phase, physical prototypes undergo stress testing to verify load-bearing capacities and vibration resistance. Learn about ZCASE Custom Build Cases to see how bespoke protection is engineered for high-value production gear.

The Future of Touring Hardware

The trajectory of touring hardware focuses on the optimization of strength-to-weight ratios and the integration of digital asset management. Future iterations of ZCASE Flip Ready Cases may incorporate advanced lightweight materials and integrated tracking technology to enhance logistical oversight. ProX has maintained a commitment to these high standards of professional protection since 1984, prioritizing the integrity of the build over aesthetic trends. This dedication ensures that professional engineers have access to the most reliable deployment platforms in the industry. To explore these engineering solutions, browse the full line of ZCASE Flip Ready Cases at ProX.

Optimizing Your Technical Infrastructure

Modern production environments demand a shift from passive gear storage to active deployment platforms. We've examined how hydraulic assists and precision-engineered workstations reduce setup times while mitigating the risk of musculoskeletal injuries. These systems ensure that your capital investments remain secured within a 12mm birch plywood shell during every phase of the event lifecycle. By integrating ZCASE Flip Ready Cases into your workflow, you're adopting a logistical tool designed for maximum operational efficiency and structural reliability.

ProX has been engineering performance gear since 1984. Our exclusive partnership with ZCASE brings patented Polish engineering directly to the global market, providing industry professionals with high-end mechanical solutions backed by robust support. You can secure the future of your touring operations by investing in equipment that prioritizes functional excellence and engineering precision over simple containment. Functional reliability is the backbone of every successful production.

View the Full ZCASE Flip Ready Collection and upgrade your deployment standards today. It's time to let the hardware handle the heavy lifting so your crew can focus on technical precision.

Frequently Asked Questions

Can one person really set up a large-format console using these cases?

Yes, the patented hydraulic lift system is specifically engineered to allow a single operator to transition the console from transport to operational mode. The mechanism counterbalances the weight of the desk, effectively neutralizing the physical force required for rotation. This engineering eliminates the need for multi-person lifts, allowing a solo technician to deploy a large-format mixer in under three minutes while maintaining full control over the descent and positioning.

How do the hydraulic struts handle extreme temperatures during winter tours?

The hydraulic components used in ZCASE Flip Ready Cases are industrial-grade and designed to operate within a broad thermal range common in global touring. While extreme cold can increase the viscosity of hydraulic fluid, these struts are calibrated to maintain consistent resistance across typical winter tour environments. For optimal performance in sub-zero conditions, a single manual cycle of the mechanism during load-in helps distribute the fluid and ensures smooth operation.

Are the internal rack spaces standard 19-inch width?

Yes, the integrated rack spaces located beneath the console cradle utilize standard 19-inch widths. These spaces, typically ranging from 2U to 4U depending on the specific case model, allow for the installation of outboard processing, power conditioners, or wireless monitoring units. This design facilitates a centralized technical hub where all peripheral gear remains patched during transit, further reducing the complexity and time required for venue setup and strikes.

What happens if a hydraulic strut fails while on the road?

The hydraulic struts are high-reliability components, but the design includes mechanical safety locks as a secondary fail-safe. If a strut loses pressure, the manual locking pins ensure the console remains securely in its horizontal operational position. ProX provides replacement parts for all internal components, ensuring that technicians can perform field repairs if necessary. The system's structural 12mm birch plywood frame remains a stable workstation even during maintenance intervals.

Do these cases fit into a standard truck pack for logistical efficiency?

ZCASE Flip Ready Cases are engineered with external dimensions that align with standard truck-pack widths to maximize logistical density. This allows them to integrate seamlessly with TruckPaX™ Truck Pack Cases and other standardized transport units. By adhering to uniform logistical standards, these cases minimize shifting during transit and optimize the use of trailer space, which is a critical requirement for professional touring companies managing large-scale equipment inventories.

Is the console bolted into the case, or does it sit in foam?

The console is secured within a custom-fit cradle utilizing high-density, CNC-cut foam inserts rather than being bolted to the frame. This foam sits within a rigid internal structure that moves with the flip mechanism. This approach provides superior vibration reduction and shock absorption compared to direct bolting, protecting the console's internal circuitry from micro-fractures. The precision fit ensures the hardware remains immobile during rotation without requiring invasive physical modifications.

Can I customize the external color or branding of the case?

ProX offers ZCASE Custom Build Cases for professionals requiring bespoke aesthetics or specialized branding. While standard models feature a durable black finish, the custom engineering service allows for modifications to meet specific tour requirements. This process includes prototyping and testing phases to ensure that any aesthetic changes do not compromise the structural integrity or mechanical performance of the hydraulic lift system. These custom orders are manufactured in Poland.

What is the typical weight penalty of the flip mechanism compared to a standard case?

The integration of the hydraulic lift and internal rack frame adds approximately 30 to 45 lbs compared to a standard passive shell. However, this weight is offset by the elimination of a separate console stand and the reduction in crew requirements. The total logistical weight is often lower when considering the entire workstation ecosystem. The added mass also contributes to the case's stability and vibration-dampening capabilities during transport, which is essential for protection.
